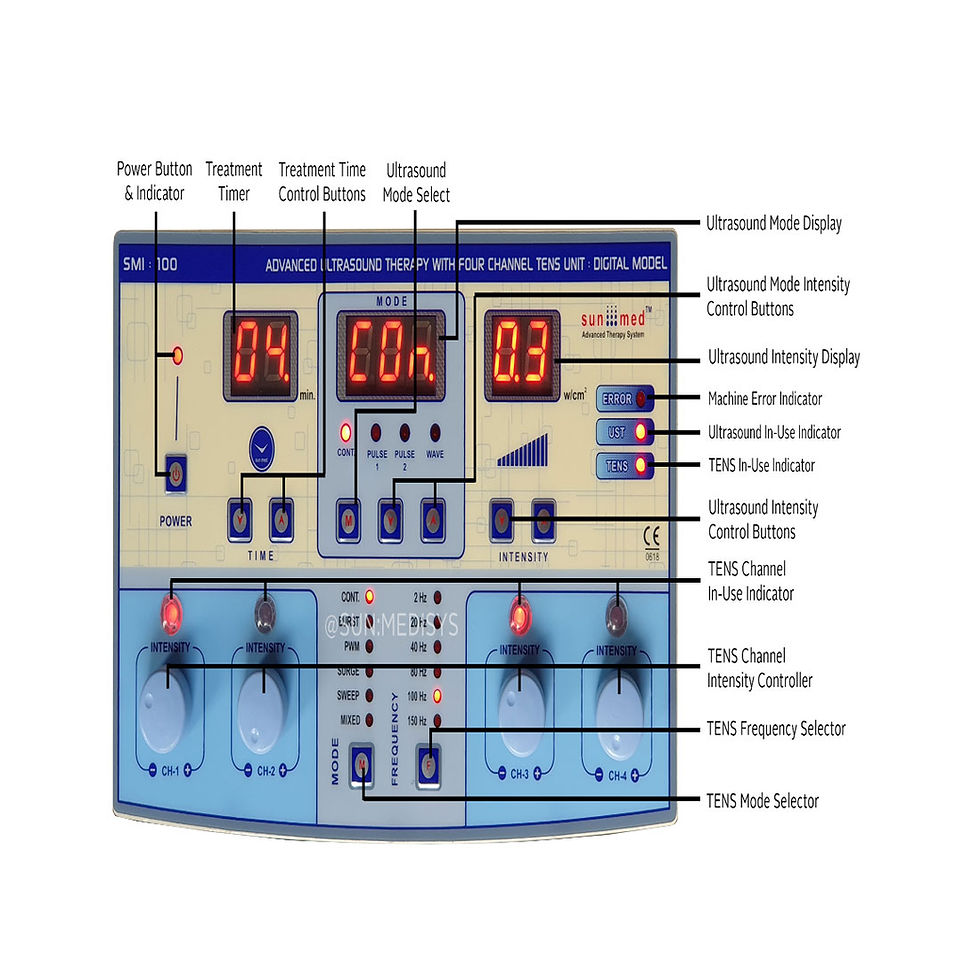

Professional Unit Combined Therapy- 1 MHz Ultrasound and 4 Channel TENS Therapy

Ultrasound Therapy 1MHz with digital output.

Ultrasound therapy process can be paused and resumed.

Four independent output channels with indicator.

0-80 mA pulse Amplitude on each channel

90 Minutes treatment timer.

In use/US/TENS/Error indicator.

Audio buzzer at the end of the treatment for safety.

Light Weight for Portability.

Machine can be operated from 90V to 240V AC 50/60Hz.

Channel                       Four independent output

Wave Form                 Biphasic Rectangular Wave

Pulse Frequency          2Hz, 20Hz, 40Hz, 80Hz, 100Hz, 150Hz

Pulse Mode                 Continuous, Burst, PWM, Surge, Sweep, Mixed

Pulse Amplitude          0 – 80 mA/Channel

Pulse width                 150 micro sec. (except PWM Mode)

Timer                           0 – 90 min

ULTRASONIC

Emission Frequency    1 MHz ±10%

Modes                         Continuous

PULSE 1, PULSE 2 & WAVE

Ultrasound Power       2.5 W/cm2 in continuous

3.5 W/cm2 in pulsed

Dimensions                 38 x 28 x 12.5 cm (LXBXH)

Fuse                             1 Amp

Power Source              90 to 240V AC 50/60Hz, SMPS supply

Weight                        1.2 Kg. /unit

ULTRASONIC DOSE Modes

Continuous:     0 to 2.5 Watts/cm2

Pulse 1:            Pulse frequency variable from 1Hz, 10 Hz, 50 Hz & 100 Hz

and intensity from 1 to 3.5 Watts /cm2

Pulse 2:            Pulse ratio variable from 1:2, 1:4, 1:7 & 1:9 ratio

and intensity from 1 to 3.5 Watts /cm2

Wave:              Pulse intensity will vary automatically from 0.5 W/cm2 to

Highest value set from 0.5 W/cm2 to 3.5 Watts /cm2

MODEL- SMI 100

DESCRIPTION:

Our next generation Combination Therapy Unit SMI-100 has Ultrasound Therapy 1MHz with 4 Channel T_E_N_S Therapy is designed to suit almost every clinical application to provides effective management for most of the musculoskeletal painful / inflammatory conditions including degenerative pathologies.

The unit comprises of digital pulses generator with versatile parameter settings suitable for almost every clinical applications, its integrated digital cut-off timer adds to precision and convenience of treatments. This unit is suitable for both clinical and mobile purposes. The unit comes with all necessary accessories for therapeutic application. Its user-friendly features offer best of the treatment parameters in its class. The unit comes with our traditional assurance of quality and safety standards.
